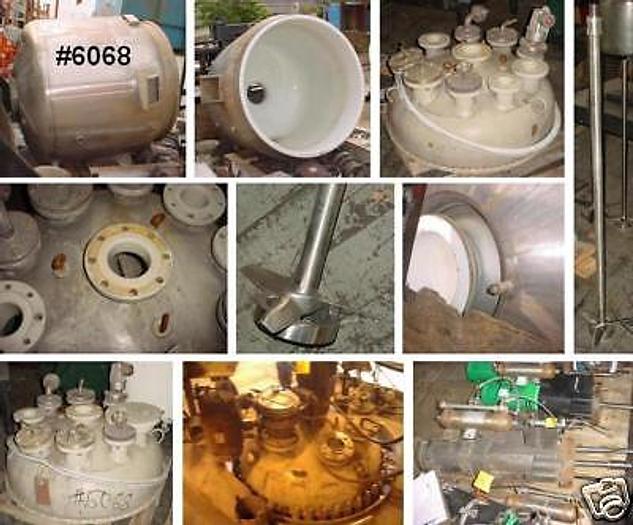

1 - used 300 gallon Pfaudler Glass Lined Reactor. Glass type #4025. Built in 1995 (repaired by Pfaudler in 2004). Rated 100 psi/FV internal @ 300 deg. F. Stainless steel (reported to be T-316) jacket rated 90 psi @ 300 deg. F. Vessel is approx. 43 3/4 in. ID x 38 1/2 in. straight side. Approx. 10 in. dia. center bottom outlet. Lug mounted with structural support. Serial #J001650. Pfaudler mfg. repair #J056567. Pressurized mechanical seal. National Board #48124. Dome top with misc. flanged inlets including 5 in. ID top center for agitator. Driven by .5 HP/.373 kw Lightnin Vektor model V5S37 agitator. Vektor S/N - 95/e35650. 230/460V. UL listed. Metallic shaft is approx. 1 1/4 in. dia. x 60 in. long with (3) pitched turbine blades & stabilizer ring (ground smooth welded). With approx. 4 in. dia. Fluid Flow Products electric/air solenoid top inlet valve.
|Country/region of manufacture||United States|
